詳細介紹 / Details

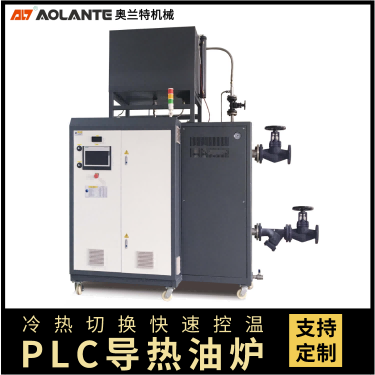

	導熱油電加熱器是一種節能環保、安全的電加熱油鍋爐,加熱功率可以達到1000KW.
特 點:
Features
管路防爆裝置
Explosion-proof equipment for pipelines
吹氣回油功能
Air blowing and return oil return function
回油溫度顯示表
Thermometer for return oil
開機自動排氣功能
Automatic air-exhausting function after startup
加熱功率切換功能
Switchover of heating power
負壓系統運轉(選購)
Negative-pressure system (optional)
RS485通訊功能,實現自動化管理(選購)
RS485 communication function for automated management (optional)
即時冷卻關機功能(選購)
Instant cooling return oil shut-down function
隔離式電器控制箱,延長電器使用年限
Isolated electric box for longer services lives of electric appliances
熱油BY-PASS泄壓回路
BY-PASS pressure release loop for hot oil
多點溫度控制機組可訂作
Customizable multi-point temperature control unit
油泵馬力和加熱功率可訂作
Customizable horsepower and heating power of oil pump
電器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
溫度控制范圍: 進水溫+25℃→300℃
Range of temperature control: +25℃→450℃ for incoming water
304不銹鋼一體管路,減少管阻及銹垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用進口微電腦或(選購)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保護完善,故障顯示, 維修.保養無需專業人員
Perfect safety protection, fault display, easy repair and maintenance even free of professionals
|
				 模型Model  |

				 單位UNIT  |

				 TOB-180  |

				 TOB-200  |

				 TOB-240  |

				 TOB-280  |

				 TOB-320  |

				 TOB-360  |
		|
|
				 溫控范圍 Control range  |

				 ℃  |

				 300℃  |
		||||||
|
				 溫控精度 Temp.control accuracy  |

				 ℃  |

				 PID±1℃  |
		||||||
|
				 電源 Power supply  |


  |

				 AC 3φ380V50HZ(or other)或其它  |
		||||||
|
				 傳熱媒體 Heat.transfer medium  |


  |

				 導熱油CEAT TRANSFER OIL  |
		||||||
|
				 冷卻方式 Cooling method  |


  |

				 間接冷卻INDIRECT C00LING  |
		||||||
|
				 加熱能量Heating capacity  |

				 KW  |

				 180  |

				 200  |

				 240  |

				 280  |

				 320  |

				 360  |
		|
|
				 泵浦馬力(功率)Horsepower of Pump  |

				 HP/KW  |

				 10/7.5  |

				 10/7.5  |

				 15/11  |

				 20/15  |

				 20/15  |

				 30/22  |
		|
|
				 泵浦工作流量 Working flow of pump  |

				 L/MIN  |

				 500  |

				 500  |

				 700  |

				 1000  |

				 1000  |

				 1700  |
		|
|
				 泵浦工作壓力Working pressure of pump  |

				 KG/C㎡  |

				 5.0  |

				 5.0  |

				 5.0  |

				 6.0  |

				 5.5  |

				 5.5  |
		|
|
				 大電力消耗Maximum power consumption  |

				 KW  |

				 188  |

				 208  |

				 252  |

				 295  |

				 335  |

				 388  |
		|
|
				 警報功能 Alarm function  |


  |

				 缺相/缺油/超溫/過載/反轉  |
		||||||
|
				 冷卻水配管Cooing water pipework  |

				 INCH  |

				 1  |

				 1  |

				 1  |

				 1  |

				 1  |

				 1  |
		|
|
				 循環油配管Circulation oil pipe  |

				 INCH  |

				 DN40  |

				 DN40  |

				 DN50  |

				 DN50  |

				 DN50  |

				 DN65  |
		|
|
				 外型尺寸 LxWxH  |

				 MM  |

				 2000x600x1600  |

				 2000x600x1600  |


  |


  |


  |


  |
		|
|
				 重量 Weighht  |

				 KG  |

				 /  |

				 /  |

				 /  |

				 /  |

				 /  |

				 /  |
		|
